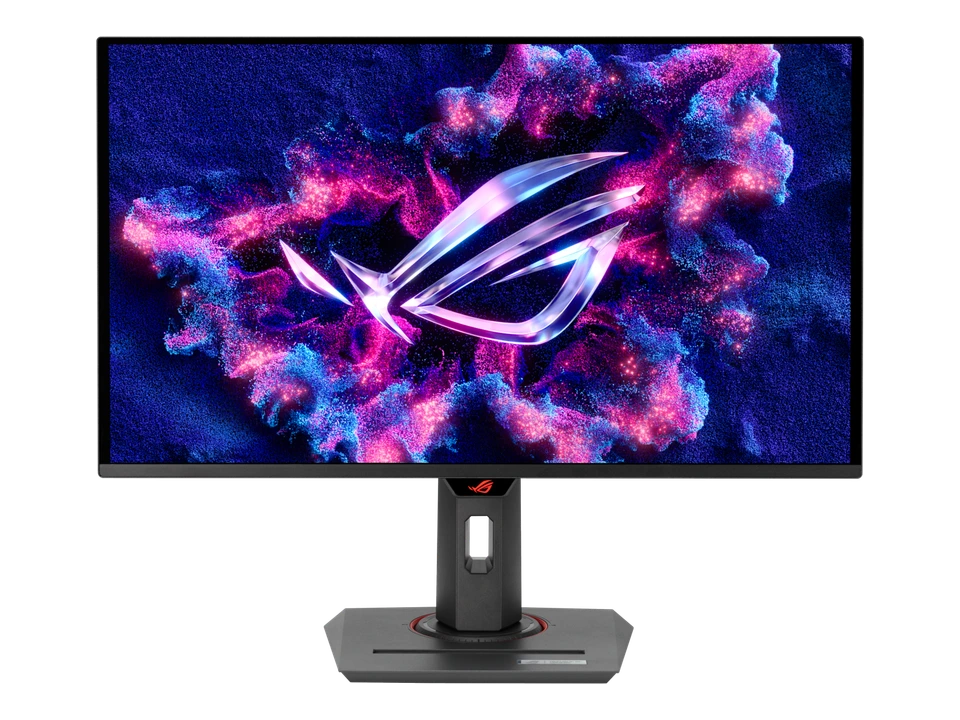

ASUS ROG Strix XG27UCDMG Text Clarity Analysis: Does a 166 PPI 4K QD-OLED finally resolve the subpixel fringing penalty for productivity?

1Per-Pixel Contrast in Dark Environments

Because QD-OLED pixels are self-emissive and individually powered, a pure black background emits exactly zero nits of luminance, generating an infinite contrast ratio against adjacent illuminated text.

• • In dark-mode code editors, the complete lack of backlight bleed allows fine syntax highlighting to stand out with extreme precision, reducing the optical strain required to parse dense files.
• • The localized contrast ratio mathematically compensates for the lack of RGB-stripe subpixels, producing perceived edge sharpness that rivals higher-density LCD configurations.

2Motion Resolution and Text Ghosting

The 0.03ms gray-to-gray (GTG) pixel response time physically eliminates the liquid crystal transition latency that causes text ghosting on traditional VA and IPS panels.

• • During rapid vertical scrolling in PDF viewers or web browsers, typographical elements remain entirely sharp through the motion path.
• • This motion clarity operates completely independently of the 240Hz refresh rate; even at a static 60Hz output from a productivity laptop, the pixel transition blur is non-existent.

1ClearType and Square-Triangular Alignment

The modified subpixel clustering reduces the severity of Windows ClearType mismatches by increasing the density of the active pixel area, masking the non-standard geometry.

• • While ClearType still fundamentally assumes a horizontal RGB stripe, the 166 PPI density ensures that the misaddressed subpixels are too small to register as distinct color bands to the human eye.
• • Running the ClearType Tuner in Windows remains recommended to prioritize grayscale smoothing over aggressive subpixel manipulation, further stabilizing diagonal letterforms.

2Font Weight and Fringing Visibility

The visibility of any residual geometric artifact scales inversely with font weight; heavier strokes mask the triangular layout completely, while thin strokes expose it.

• • At 12pt regular weight (e.g., Segoe UI), text edges are uniform and continuous at standard 24-inch desk distances.
• • Sub-10pt light-weight fonts viewed at close proximity (under 20 inches) represent the only remaining scenario where a trained eye might perceive a deviation from RGB-stripe clarity.

1BlackShield Ambient Rejection

The proprietary BlackShield film acts as a physical barrier that prevents ambient room light from striking and artificially exciting the internal quantum dot layer.

• • This treatment fundamentally resolves the elevated, purplish-gray black levels that plagued earlier QD-OLED panels in well-lit office environments.
• • Dark-mode IDEs remain pitch-black even when overhead fluorescent lights are active, preserving the infinite contrast ratio necessary for prolonged coding sessions.

2Reflection Handling in Bright Offices

Because the display lacks a heavy matte diffusion layer, it preserves absolute micro-contrast but requires the user to proactively manage direct reflection sources.

• • Direct light sources located behind the seated user will overlay sharp, distracting reflections exactly at the focal plane of the text.
• • The lack of matte grain ensures that bright white document backgrounds remain perfectly clean, avoiding the 'sparkle' effect that degrades text sharpness on heavily coated IPS panels.

1Uniform Brightness Constraint

The hardware-level Uniform Brightness toggle forcefully bypasses the panel's standard Auto Brightness Limiting (ABL) algorithms by capping the maximum SDR output.

• • With the feature enabled, SDR peak luminance is locked at approximately 250 nits regardless of whether white content occupies 10% or 100% of the screen area.
• • This 250-nit cap aligns perfectly with standard ergonomic guidelines for office lighting (120-200 nits), making it highly comfortable for 8-hour document editing sessions.
• • Users requiring higher luminance in bright, sunlit rooms will find the 250-nit ceiling inadequate, representing a hard productivity constraint for specific environments.

2Colorimetric Accuracy and Off-Axis Tinting

The QD-OLED architecture produces a pure, neutral white point centrally, avoiding the distinct color banding common on heavily filtered LCD panels.

• • The display natively covers 99% of the DCI-P3 color gamut, ensuring extreme color saturation for digital media creation.
• • At extreme viewing angles, minor color temperature shifts may become perceptible, but these remain entirely invisible from a centered ergonomic seating position.
